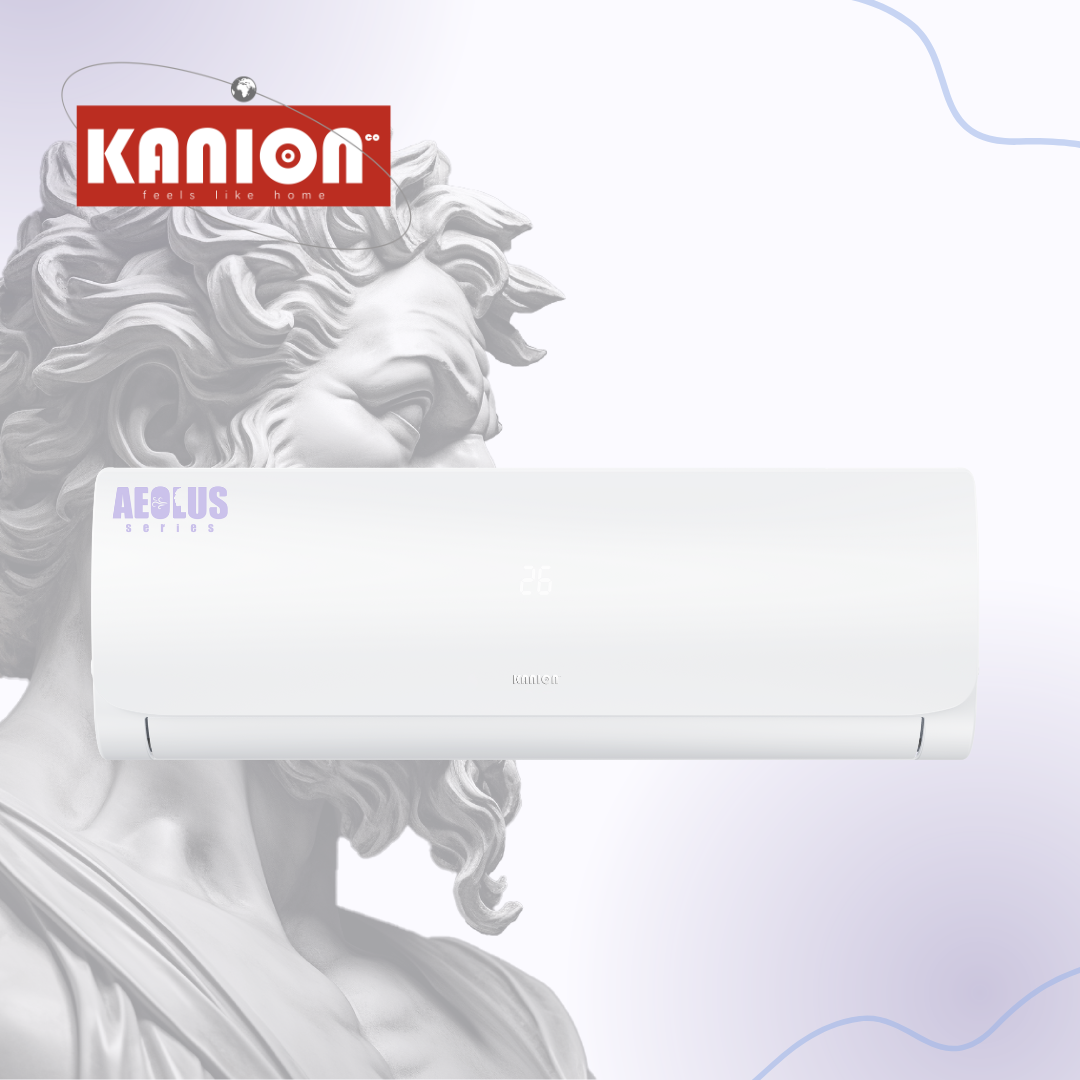

Aeolus Series R410A Wall Split Type Cooling and Heating Designed For Middle Asia

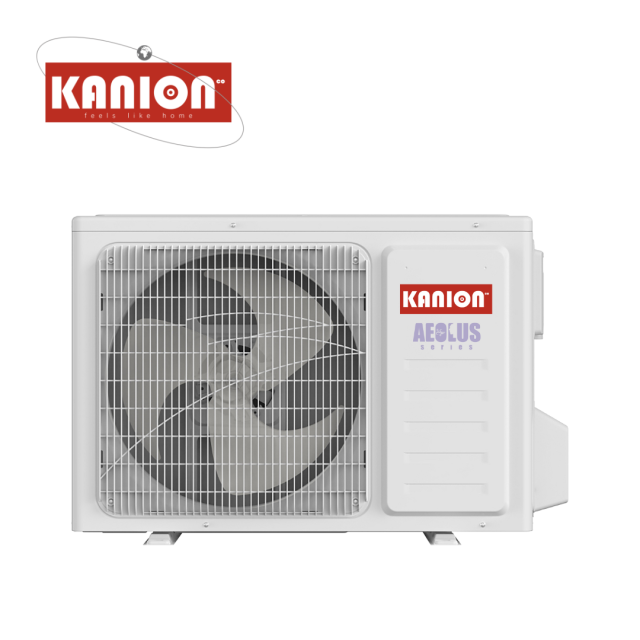

Aeolus Series R410A Wall Split Type Cooling and Heating Designed For Middle Asia - Image 2
Aeolus Series R410A Wall Split Type Cooling and Heating Designed For Middle Asia - Image 3
Categories: ,

Aeolus Series R410A Wall Split Type Cooling and Heating Designed For Middle Asia

The Aeolus Series R410A Wall Split Type air conditioner is designed for cooling and heating, specifically tailored for the Middle Asia region. Utilizing eco-friendly R410/R32 refrigerant, this unit delivers efficient and reliable performance to meet the climate needs of Middle Asia. Its advanced inverter technology ensures exceptional cooling even in extreme temperatures. Energy-saving and durable, it is the ideal choice for maintaining a comfortable environment in the region.

Kanion Co Air conditioner Specification

Product Specification Download

Inquire

The Aeolus Series R410A Wall Split Type air conditioner is designed for cooling and heating, specifically tailored for the Middle Asia region. Utilizing eco-friendly R410/R32 refrigerant, this unit delivers efficient and reliable performance to meet the climate needs of Middle Asia. Its advanced inverter technology ensures exceptional cooling even in extreme temperatures. Energy-saving and durable, it is the ideal choice for maintaining a comfortable environment in the region.

Kanion Co Air conditioner Specification

Product Specification Download

Additional information

Rated cooling capacity(T1)

24000 Btu
Rated heating capacity

24500 Btu
Operation

Cooling and Heating, Dehumidify, Gentle Cool Wind, Smart app
Description

Wall Split Type Inverter 50Hz
Power supply

220v-240V 50Hz

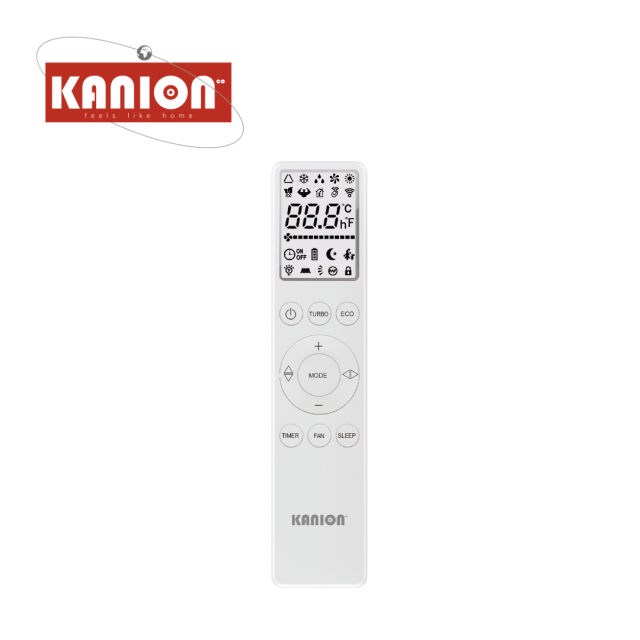

Control type

Remote Controller (Standard) / Smart App Controller compatible with all major A.I. voice assistants (Optional)
Filter type

Top-Opened Filters, High Density Filters
Heat exchangers

Golden Anticorrosive Technology
Warranty

24 months for units / 5 years for compressor
Model number

KWSM-24R410AHFAET
EER for cooling

3.21 W/W
COP for heating

3.61 W/W
Moisture removal

2.7 Liters/h
Pressure

1.2 – 4.2 MPa
Indoor noise level

44 dB(A)
Outdoor noise level

53 dB(A)
Climate type

T1
Voltage Range

187~253 V
Current

Cooling: 10.0 A
Heating: 9.0 A
Power input

Cooling: 2191 W
Heating: 1989 W
Rated Current

Cooling: 13 A
Heating: 12 A
Rated Power input

Cooling: 2849 W
Heating: 2586 W
Compressor

Type: GMCC
Model: KSF240
Brand: Rotary
Evaporator

Hydrophilic & Louver Fin; Innergroover tube type
Condenser

Louver or Corrugated Fin; Innergroover tube type
Expansion device

Capillary tube
Defrosting system

Microcomputer controlled reverse system
Indoor air volume(Cooling/Heating)

1160 m3/h
Indoor fan type

Cross flow
Outdoor fan type

Propeller
Connecting Pipe

Gas Φ12(1/2'') Inches
Liquid Φ6(1/4'') Inches
Ambient temperature

-7~43 ℃
Suitable area

30～55 m2
Net dimensions (W x Dx H)

Indoor: 960*325*240 mm
Outdoor: 900*375*587 mm
Net weight

Indoor: 15 kg
Outdoor: 40 kg
Packing dimensions (W x D x H)

Indoor: 1019*378*316 mm
Outdoor:（with piping） 925*400*644 mm
Gross weight

Indoor: 22 kg
Outdoor: (with piping）44 kg
Loading Qty

40'HQ (with piping) : 190 sets
